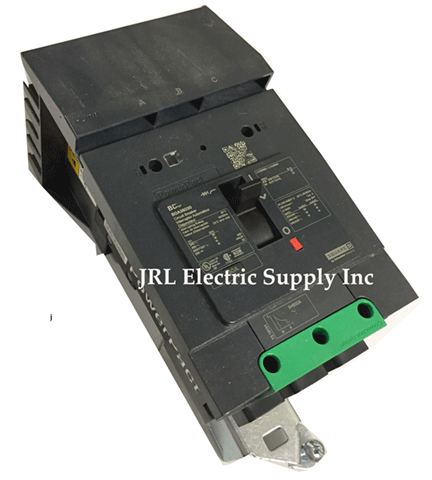

BDA36110 - Square D 3 Pole 110 Amp 480 Volt I-Line Circuit Breaker (Copy)

BDA36110 - Square D 3 Pole 110 Amp 480 Volt I-Line Circuit Breaker (Copy)

$835.00 USD
$955.00 USD $835.00 USD
Sale Sold out
Shipping FREE SHIPPING on all Orders Except Panelboards.
Title

BDA36110 - Square D 3 Pole 110 Amp I-Line Circuit Breaker


Product or Component Type Circuit breaker
Type BDA I-Line
Trip Unit Type Thermal-magnetic
Line Rated Current 110 A
Number of Poles 3P
Interrupt Rating 10 kA at 250 V DC
25 kA at 120/240 V AC
18 kA at 277/480 V AC
System Voltage 250 V DC
480 V AC
mounting mode I-Line
electrical connection I-Line connection line
Lugs load
Wire Gauge AWG 14...AWG 4 (copper) 1 cable(s)
AWG 12...AWG 4 (aluminium) 1 cable(s)
Terminal Type
phase connection ABC
height 6.4 in
width 4.5 in
depth 4.13 in
product certifications CSA
UL listed
The PowerPact B-Frame Replacement Molded case circuit breakers from Square D by Schneider Electric give right combination of features and performance to satisfy circuit breaker requirements. These circuit breakers deliver unmatched design flexibility from 15A to 125A, offering benefits of a flexible, modular and easy to install circuit breaker. These are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPact B brings thermal magnetic circuit protection in a compact size and offers wide range of accessories, auxiliaries and lug options. Modular, easy to install terminal options include patented EverLink lugs with or without control wire terminals, mechanical lugs, compression lugs, power distribution connectors, bus bar connectors, terminal spreaders and terminal shields. Standards and certifications include UL 489, IEC/EN 60947-5-1, CE, CSA C22.2 no 5, GB 14048-2, EAC, NMX J-266, CCC, IEC/EN 60947-2 and NOM. Available in various dimension and weights.
  • Flexible, high performance circuit breaker
  • Dual break rotating contacts, smallest footprint, manual reset, IP40/IK07 degree of protection
  • Available in 1, 2, 3 and 4-pole unit mount construction & 1, 2 and 3 pole I-Line construction
  • Economical fixed thermal magnetic trip units from 15A to 125A up to 600Y/347VAC
  • Interrupting ratings include D-18kA, G-35kA and J-65kA, K-65kA at 480VAC
  • Unit mount construction includes integrated DIN rail and traditional back pan mounting capability
  • Best in class I-Line mounting for Square D panel board and switchboard applications
  • Wide range of field-installable accessories for more flexibility and less inventory
  • 2-3 pole automatic moulded case switches available at 125A up to 600VAC delta
  • Over-centre toggle mechanism, -25°C to 70°C ambient air temperature for operation

Applications

Safety, Industrial, Commercial

The Square D BDA Circuit Breakers are made from 15 to 125 Amp and fit into I-Line Panelboards. They are available from 15 to 125 Amps. They are very high quality as you would expect from Square D. These are Plug on type, 480 Volt and have an interrupting capacity of 18,000 @ 480 Volt Your Satisfaction is guaranteed. Every product sold by JRL Electric Supply are authentic and never modified. With 35 Years’ experience in Circuit Breakers, you will receive the correct item the first time and 98% of all orders are shipped same day
