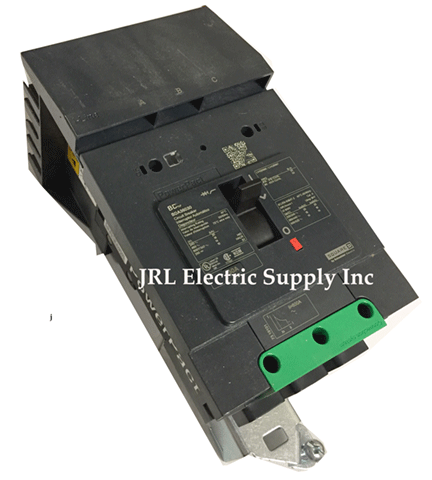

Square D BDL36045 – 45A 3-Pole 480V BDL Circuit Breaker

Square D BDL36045 – 45A 3-Pole 480V BDL Circuit Breaker

Description

The Square D BDL36045 is a 45-amp, 3-pole BDL molded-case circuit breaker for electrical distribution and replacement projects. This 480V breaker is listed with a lug-to-lug connection configuration and thermal-magnetic protection. It is intended for use only with manufacturer-approved equipment and mounting arrangements. Confirm the full catalog number, terminal requirements and electrical ratings before ordering.

Specifications

• Brand: Square D / Schneider Electric
• Catalog number: BDL36045
• Series: BDL / PowerPacT B-Frame
• Amperage: 45 A
• Poles: 3
• Voltage shown in source: 480 V AC
• Connection style: Lug-to-lug (as listed in original product information)
• Trip technology: Thermal-magnetic (per original listing)
• Interrupting rating: 18 kA at 480 V AC (per original listing)

Features and applications

• Three-pole molded-case circuit breaker
• Thermal-magnetic overcurrent protection
• For approved commercial and industrial distribution equipment
• Verify lug-to-lug connection and equipment fit before installation

Product FAQs

Q: What are the main specifications?

A: This listing identifies BDL36045 as a 45A, 3-pole, 480V Square D BDL circuit breaker with a lug-to-lug configuration.

Q: Is this an I-Line breaker?

A: The original listing contains conflicting I-Line and lug-to-lug wording. Do not assume I-Line compatibility; verify the mounting configuration against the panelboard documentation.

Q: What is the interrupting rating?

A: The existing product information states 18 kA at 480V AC. Verify the rating on the breaker label and manufacturer documentation.

Q: Can this replace an older Square D breaker?

A: A replacement must be approved for the specific application. Match the full catalog number, electrical ratings, terminal type and equipment listing.

Q: How do I confirm condition and availability?

A: Contact JRL Electric Supply Inc. with the part number to confirm the current condition and stock.

Need help identifying the correct breaker? Contact JRL Electric Supply Inc. with your existing breaker catalog number and equipment information.
