E43B090 ITE E43 3 Pole 90 Amp 480 Volt

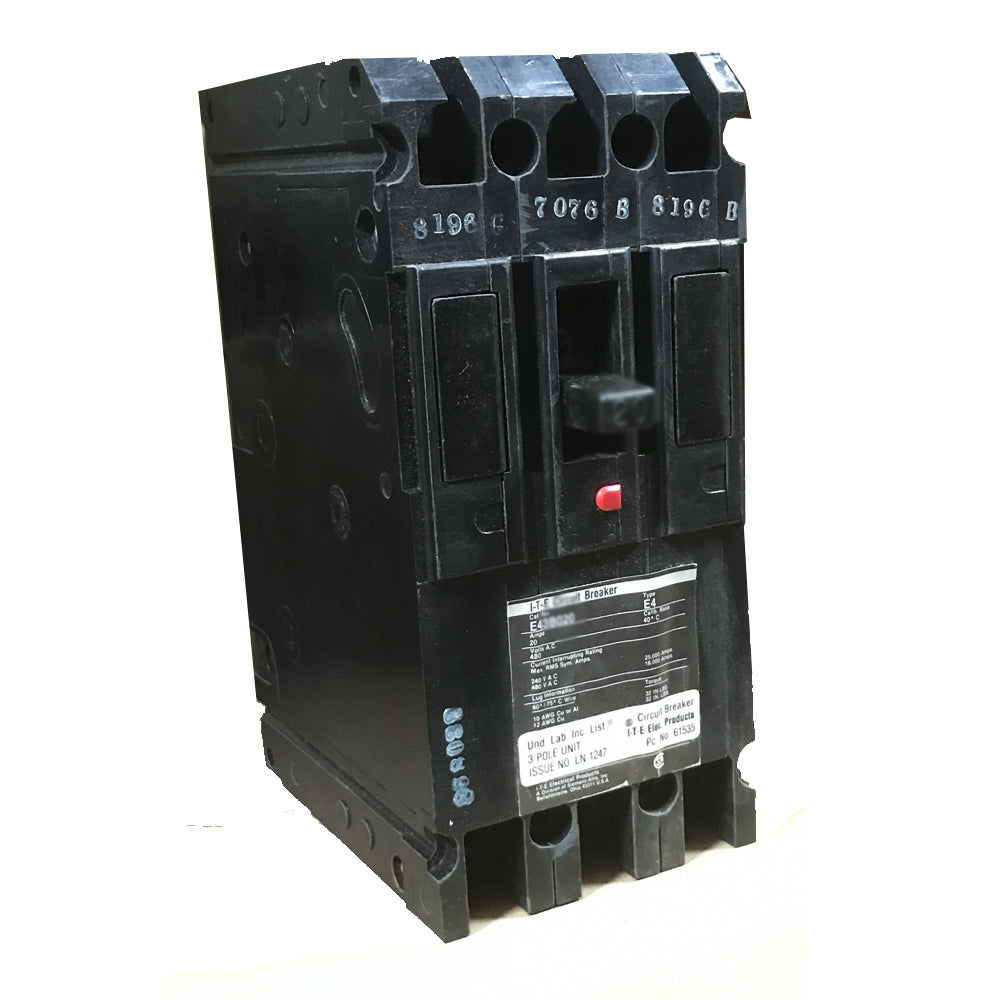

The E43B090 is a ITE molded case circuit breaker, specifically designed for panelboard mounting. It's a 3-pole breaker with a 90 Amp rating and a 480 VAC voltage rating. The E43B090 features a bolt-on connection type and has a thermal magnetic trip units with both long-time and instantaneous trip functions.

Here's a more detailed breakdown:

• Type: ITE E43
• Pole Configuration:3-pole
• Amperage: 90 Amps
• Voltage:480 VAC (also 277 VAC in some configurations)
• Interrupt Rating:14kAIC at 480VAC
• Connection Type:Bolt-on
• Trip Type:Thermal-magnetic, with long-time and instantaneous trip functions
• Frame Size:15 to125 amp
• Mounting:Panelboard mount
• Other Features:HACR ratings, switching duty ratings.
