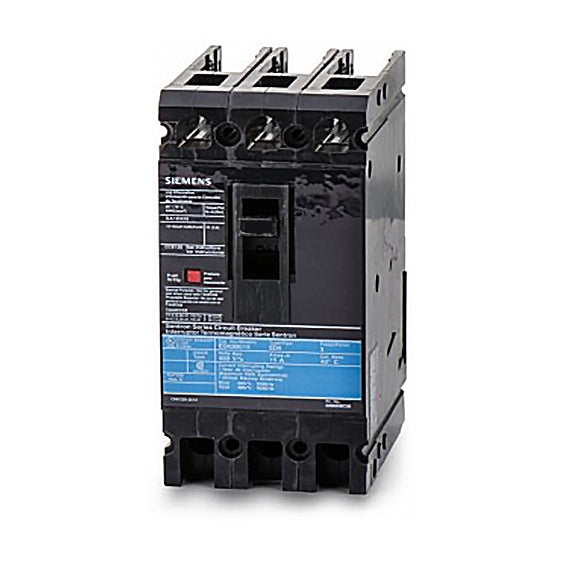

ED43B125 Siemens ED4 3 Pole 125 Amp 480 Volt

The ED43B125 is a Siemens molded case circuit breaker, specifically designed for panelboard mounting. It's a 3-pole breaker with a 125 Amp rating and a 480 VAC voltage rating. The ED43B125 features a bolt-on connection type and has aÂÂthermal magnetic tripÂÂunits with both long-time and instantaneous trip functions.ÂÂ

Here's a more detailed breakdown:ÂÂ

• Type: Siemens ED4
• Pole Configuration:ÂÂ3-pole
• Amperage: 125 Amps
• Voltage:ÂÂ480 VAC (also 277 VAC in some configurations)
• Interrupt Rating:ÂÂ14kAIC at 480VAC
• Connection Type:ÂÂBolt-on
• Trip Type:ÂÂThermal-magnetic, with long-time and instantaneous trip functions
• Frame Size:ÂÂ15 to125 amp
• Mounting:ÂÂPanelboard mount
• Other Features:ÂÂHACR ratings, switching duty ratings.
