KA36070 Square D

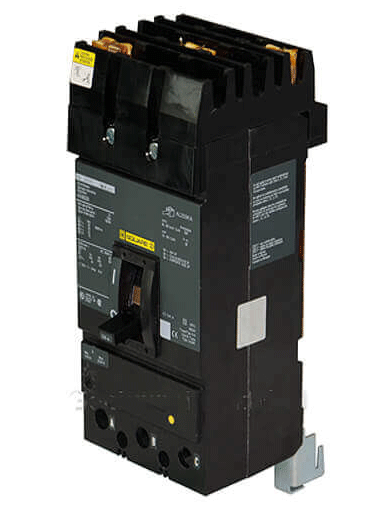

KA36070 Square D Circuit Breaker 3 Pole 70 Amp

This Circuit Breaker is Obsolete, You will be supplied with the Square D Replacement Breaker.

The Replacement for the KA Circuit Breaker is a direct replacement and will fit right in where the KA has been installed (same width and jaw size no modification needed)

Type KA Square D 3 Pole 200 Amp Replacement I-Line Circuit Breaker

Schneider Electric / Square D Circuit Breaker, Its Compact And Easy to Install, The KA Replacement circuit breakers have a current rating of 70 Amp a voltage rating of 480 Vac/270 Vdc at 60 Hz The Circuit Breaker has interrupting rating of 18 kilo-Amps at 480 Vac, it can accommodate copper wires of size 14 1/0 Awg and aluminum wires of size 12 1/0 Awg.

Specifications : •Manufacturer : Schneider Electric / Square D •Cat. No. : KA36070 Replacement •Alternate Part No. : KA36070 •Product Type : I-Line Circuit Breaker •240/480 Vac At 60 Hz, 480 Vac Star/277 Vac •240/415 Vac At 60 Hz (Iec), 270 Vdc •Amperage : 70 Amps •No. Of Poles : 3 Pole •Interrupting Rating : 25 Kiloampere At 240 Vac, 18 Kiloampere At 480 Vac Star/277 Vac Or 480 Vac (Ul/Csa/Nom) •Application Power Distribution •KA Model

•Tripping Method Thermal Magnetic •Terminal Wire Size : 14 To 1/0 Awg (Copper)/12 To 1/0 Awg (Aluminum) •Approval Ul, Csa
