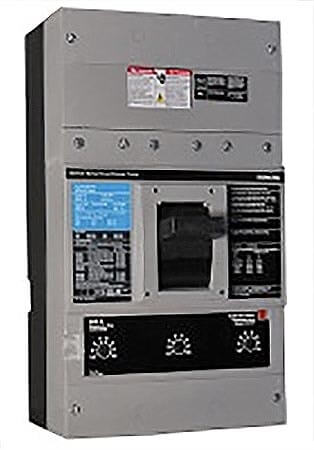

MD63B600 ITE / Siemens

The MD63B600 is a Siemens molded case circuit breaker, specifically designed for panelboard mounting. It's a 3-pole breaker with a 600 Amp rating and an aic rating of 50,000 @ 480 VAC. The MD63B600 features a bolt-on connection type and has a thermal magnetic trip unit with both long-time and instantaneous trip functions.

Here's a more detailed breakdown:

• Type: Siemens MD
• Pole Configuration: 3-pole
• Amperage: 600 Amps
• Voltage: 480 VAC (also 277 VAC in some configurations)
• Interrupt Rating: 50kAIC at 480VAC
• Connection Type: Bolt-on
• Trip Type: Thermal-magnetic, with long-time and instantaneous trip functions
• Frame Size: 500 to 800 Amp
• Mounting: Panelboard mount
• Other Features: HACR ratings, switching duty ratings.
