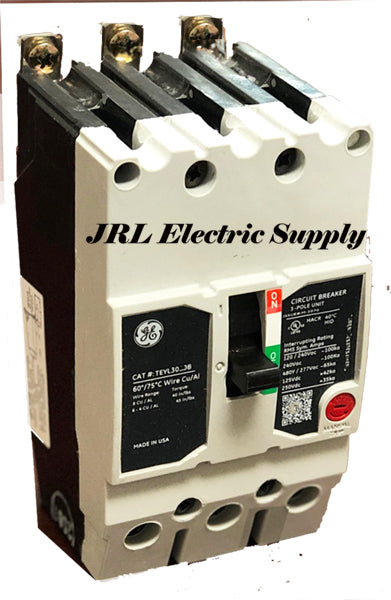

TEYL3020B 3 Pole 20 Amp 65K

TEYL3020B Bolt-on 20 Amp 3 Pole 480 Volt 65k

New Removed from Non Energized Panel

Specifications :

	Circuit Breaker	Type TEYL
	Manufacturer	GE
	Cat. Number	TEYL3020B
	Also Called	TEYL -320
	Maximum Voltage	480 Volt
	Amperage	20 Amps
	Poles	3 Pole Circuit
	Mounting	Bolt-on
	Model	TypeTEYL
	Tripping Method	Thermal Magnetic
	AIC Ratings	65K @ 480 Volt

The TEYL is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEYL suitable for varied applications as a lug-lug breaker. All TEYL circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYL breakers are available in 1, 2, and 3 pole versions; 2&3 pole versions can be ordered with auxiliary contact, shunt trip, under-voltage release, or bell alarm accessories.
